Introducing
Camp Glass 21+
Powder Printing
Made with care and unconditionally loved by our customers, this signature bestseller exceeds all expectations.
Schedule for Powder Prints on 001408
| Segment | Rate | Temperature | Time |
|---|---|---|---|
| 1 | 400 ºF | 1275 ºF* | 0:10 |
| 2 | 9999 ºF | 900 ºF | 0:45 |
| 3 | 150 ºF | 700 ºF | 0:00 |
| 4 | 9999 ºF | 70 ºF | 0:00 |
Target Dimensions: 6˝x6˝
Kiln: GL24
Shelf: Mullite
Shelf Release: ThinFire

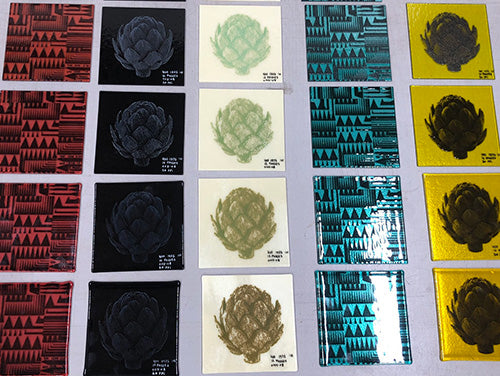

Notes: 001408-0030 tiles were cut down to 6˝ x 6˝ and powder printed with 000100-0008 black powder. A triangle design was printed using a 135-mesh screen. It was printed with 12 passes of the powder puller.
*Process temperatures vary to illustrate changes in texture and opacity of the powder as well as the change in edge deformation as the process temperature increases. Process temperatures are: 1275°, 1325°, 1375°, 1425° and 1475°.
Schedule for Powder Prints on 000137
| Segment | Rate | Temperature | Time |
|---|---|---|---|
| 1 | 400 ºF | 1275 ºF* | 0:10 |
| 2 | 9999 ºF | 900 ºF | 0:45 |
| 3 | 150 ºF | 700 ºF | 0:00 |
| 4 | 9999 ºF | 70 ºF | 0:00 |
Target Dimensions: 6˝x6˝
Kiln: GL24
Shelf: Mullite
Shelf Release: ThinFire
Notes: 000137-0030 tiles were cut down to 6˝ x 6˝ and powder printed with 000144-0008 green powder. An artichoke design was printed using a 135-mesh screen. It was printed with 12 passes of the powder puller.
*Process temperatures vary to illustrate changes in texture and opacity of the powder, reactive intensity between the sulfur-bearing 0137 and copper-bearing 0144 as well as the change in edge deformation as the process temperature increases. Process temperatures are: 1275°, 1325°, 1375°, 1425° and 1475°.
Schedule for Powder Prints on 001120
| Segment | Rate | Temperature | Time |
|---|---|---|---|
| 1 | 400 ºF | 1275 ºF* | 0:10 |
| 2 | 9999 ºF | 900 ºF | 0:45 |
| 3 | 150 ºF | 700 ºF | 0:00 |
| 4 | 9999 ºF | 70 ºF | 0:00 |
Target Dimensions: 6˝x6˝
Kiln: GL24
Shelf: Mullite
Shelf Release: ThinFire
Notes: 001120-0030 tiles were cut down to 6˝ x 6˝ and powder printed with 000100-0008 black powder. An artichoke design was printed at 37.5 ppi, using a 135-mesh screen. It was printed with 10 passes of the powder puller.
*Process temperatures vary to illustrate changes in texture and opacity of the powder, striking temperatures of the sheet glass as well as the change in edge deformation as the process temperature increases. Process temperatures are: 1275°, 1325°, 1375°, 1425° and 1475°.
Schedule for Powder Prints on 001129
| Segment | Rate | Temperature | Time |
|---|---|---|---|
| 1 | 400 ºF | 1275 ºF* | 0:10 |
| 2 | 9999 ºF | 900 ºF | 0:10 |
| 3 | 150 ºF | 700 ºF | 0:00 |
| 4 | 9999 ºF | 70 ºF | 0:00 |
Target Dimensions: 6˝x6˝
Kiln: GL24
Shelf: Mullite
Shelf Release: ThinFire
Notes: 001129-0030 tiles were cut down to 6˝ x 6˝ and powder printed with 000113-0008 white powder. An artichoke design at 20 ppi was printed using a 135-mesh screen. It was printed with 10 passes of the powder puller.
*Process temperatures vary to illustrate changes in texture and opacity of the powder as well as the change in edge deformation as the process temperature increases. Process temperatures are: 1275°, 1325°, 1375°, 1425° and 1475°.
Schedule for Powder Prints on Pinks & Purples
| Segment | Rate | Temperature | Time |
|---|---|---|---|
| 1 | 400 ºF | 1200 ºF | 2:00 |
| 2 | 600 ºF | 1275 ºF* | 0:10 |
| 3 | 9999 ºF | 900 ºF | 0:45 |
| 4 | 150 ºF | 700 ºF | 0:00 |
| 5 | 9999 ºF | 70 ºF | 0:00 |
Target Dimensions: 6˝x6˝
Kiln: GL24
Shelf: Mullite
Shelf Release: ThinFire
Notes: The hold at 1200° ensures that the pink color will mature. This is referred to as the "gold hold."
001823-0030 tiles were cut down to 6" x 6" and powder printed with 000101-0008 black powder. A triangle design was printed using a 135-mesh screen. It was printed with 12 passes of the powder puller.
*Process temperatures vary to illustrate changes in texture and opacity of the powder as well as the change in edge deformation as the process temperature increases. Process temperatures are: 1275°, 1325°, 1375°, 1425° and 1475°.
Schedule for Powder Prints on Clear and Irid
| Segment | Rate | Temperature | Time |
|---|---|---|---|
| 1 | 400 ºF | 1450 ºF | 0:10 |
| 2 | 9999 ºF | 900 ºF | 0:45 |
| 3 | 150 ºF | 700 ºF | 0:01 |
Target Dimensions: 6˝x6˝
Kiln: GL24
Shelf: Mullite
Shelf Release: ThinFire
Notes: A stencil was cut with the Cricut machine in that shape of an artichoke. The stencil was applied to the back side of a silkscreen and the image was powder printed. One tile was printed with Black Powder (000100-0008) on Clear (001100-0380) as an image reference and the other tile was printed with Clear Powder (1101-0008) on Amethyst Rainbow Irid (001228-0031) . When fired, the clear powder displaces the irid coating, creating a subtle, sparkly effect.
Fusible Decals
Made with care and unconditionally loved by our customers, this signature bestseller exceeds all expectations.
Schedule for Decals
| Segment | Rate | Temperature | Time |
|---|---|---|---|
| 1 | 80 ºF | 185 ºF | 0:20 |
| 2 | 200 ºF | 600 ºF | 0:15 |
| 3 | 600 ºF | 1425 ºF | 0:10 |
| 4 | 9999 ºF | 900 ºF | 0:45 |
| 5 | 150 ºF | 700 ºF | 0:01 |
Target Dimensions: 6˝x6˝
Kiln: GL24
Shelf: Mullite
Shelf Release: Primer

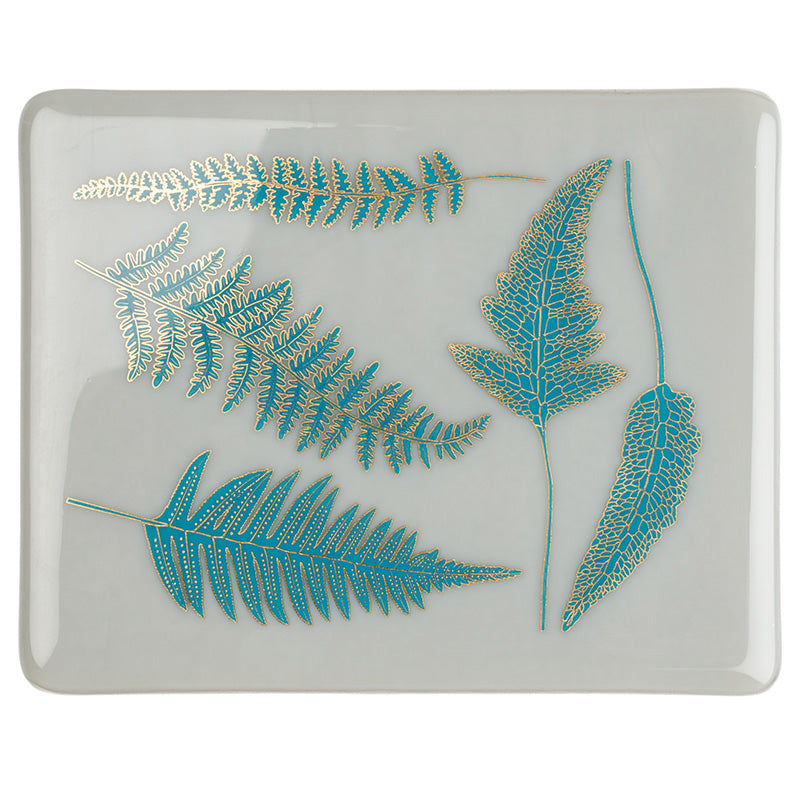

Notes: A variety of black, gold, platinum and mixed Milestone decals were fired on 000403-0030 Opaline. The hold at 185° F is to ensure the decal is dry before the next rate of heat. The hold at 600° F ensures that all organic material is burned out of the decal carrier.
The artichoke decals were fired with this schedule as well. They were ordered from decals4artists.com.
Some of the Opaline tiles were pre-fired (see schedule for pre-firing for enamels and sandblasting). The pre-fired tiles are more opaque due to the additional heatwork.
Enamel Painting & Silkscreening
Made with care and unconditionally loved by our customers, this signature bestseller exceeds all expectations.
Schedule for Enamel Screenprinting
| Segment | Rate | Temperature | Time |
|---|---|---|---|
| 1 | 400 ºF | 1400 ºF | 0:10 |
| 2 | 9999 ºF | 900 ºF | 0:45 |
| 3 | 150 ºF | 700 ºF | 0:00 |
| 4 | 9999 ºF | 70 ºF | 0:00 |
Target Dimensions: 6˝x 6˝
Process: Sinter Firing
Kiln: GL24
Shelf: Mullite
Shelf Release: Primer
Notes: Glass was pre-fired to 1490° F to make the surface of the glass smooth. Pre-fired sheets were cut down to 6˝ x 6˝ tiles and lightly beveled to prevent the screen from popping during printing. Imagery of either an artichoke or triangle pattern was printed onto the beveled tiles with a 225-mesh silkscreen. The ppi (for halftone artichokes) and colors used are as follows:
- 001120-0030, black silkscreen paste, 57.5 ppi
- 001129-0030, white silkscreen paste, 20 ppi
- 000137-0030, black silkscreen paste, stamp filter
- 001823-0030, black silkscreen paste
(Pre-struck with Gold Hold) - 001408-0030, black silkscreen paste
Products Used
Schedule for Enamel Painting
| Segment | Rate | Temperature | Time |
|---|---|---|---|
| 1 | 250 ºF | 930 ºF | 0:15 |
| 2 | 400 ºF | 1425 ºF | 0:10 |
| 3 | 9999 ºF | 900 ºF | 0:45 |
| 4 | 150 ºF | 700 ºF | 0:01 |
Target Dimensions: 6˝x 6˝
Process: Sinter Firing
Kiln: GL24
Shelf: Mullite
Shelf Release: Primer
Notes: An artichoke was painted using ColorLine enamel paints. The kiln door was closed but not latched and the peeps were out during firing. This painting does not contain any cadmium-bearing enamels (reds, oranges and yellows); There are different firing considerations when firing a piece that includes these colors because they require additional airflow for the colors to mature. The kiln door should be left slightly ajar and the peeps should be out up to 1000 °F. During the 0:15 hold at 930 °F the door should be quickly opened and shut to introduce additional air into the kiln. Latch door and replace peeps after 1000 °F.
Pre-Firing Schedules
Made with care and unconditionally loved by our customers, this signature bestseller exceeds all expectations.
Schedule for Pre-Firing Glass for Enamel Projects & Sandblasting
| Segment | Rate | Temperature | Time |
|---|---|---|---|
| 1 | 400 ºF | 1400 ºF | 0:10 |
| 2 | 9999 ºF | 900 ºF | 0:45 |
| 3 | 150 ºF | 700 ºF | 0:00 |
| 4 | 9999 ºF | 70 ºF | 0:00 |
Target Dimensions: 6˝x 6˝
Process: Pre-Fire
Kiln: GL24
Shelf: Mullite
Shelf Release: ThinFire
Notes: Glass was pre-fused to 1490 °F to make the surface smooth for enamel silkscreening as well as for applying the sandblast resist stencil. Some 000403-0030 Opaline was also pre-fired with this schedule because the process temperature that they experienced at 1425 °F would not be enough heat to fully strike the glass.
Schedule for Pre-Firing Pink & Purple Glasses
| Segment | Rate | Temperature | Time |
|---|---|---|---|
| 1 | 400 ºF | 1200 ºF | 2:00 |
| 2 | 600 ºF | 1490 ºF | 0:10 |
| 3 | 9999 ºF | 900 ºF | 0:45 |
| 4 | 150 ºF | 700 ºF | 0:00 |
| 5 | 9999 ºF | 70 ºF | 0:00 |
Target Dimensions: 6˝x 6˝
Process: Pre-Fire
Kiln: GL24
Shelf: Mullite
Shelf Release: Primer
Notes: This schedule was used to pre-fire the glass in order to make the surface smooth for silkscreen printing. The hold at 1200 °F ensures that the pink color will mature. This is referred to as the "gold hold."
